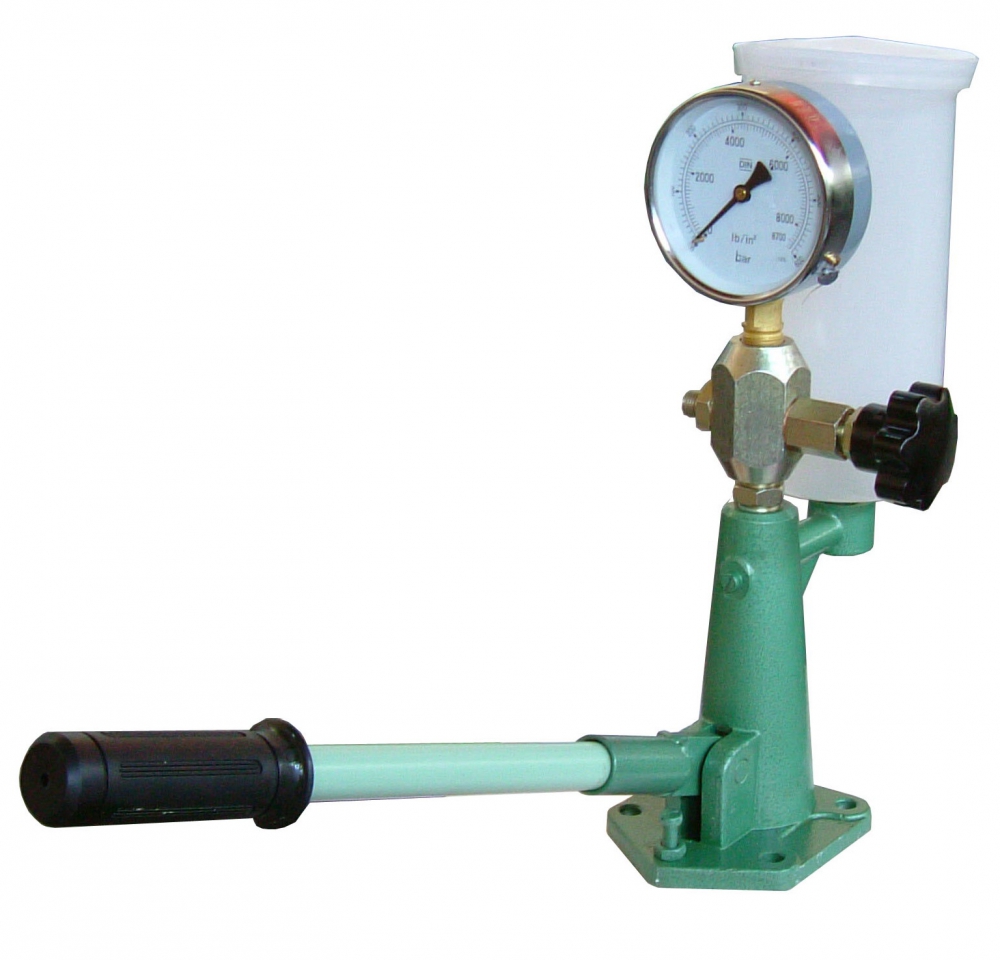

NT-1
It is used to adjust and calibrate the injection nozzle opening pressure and to carry out leakage, spray pattern and chatter characteristic tests. For nozzle size R, S and T.
Product Details
It is used to adjust and calibrate the injection nozzle opening pressure and to carry out leakage, spray pattern and chatter characteristic tests.
For nozzle size R, S and T.
In basic design with 0 ?? 60 Mpa(0 ?? 600 bar) pressure gauge.
In conjunction with a specially ordered pressure gauge,this tester can also be used for testing light crude oil injection valves.
Technical parameter:
| Pressuregauge range (Mpa) | Overall dimensions LxWxH(mm) | Capacity of fuel tank(L) | Largest pressureTested(Mpa) | Net weight (Kg) | |
| 0??60 | 150x120x350 | 3.5 | 60 | 4.5 |
